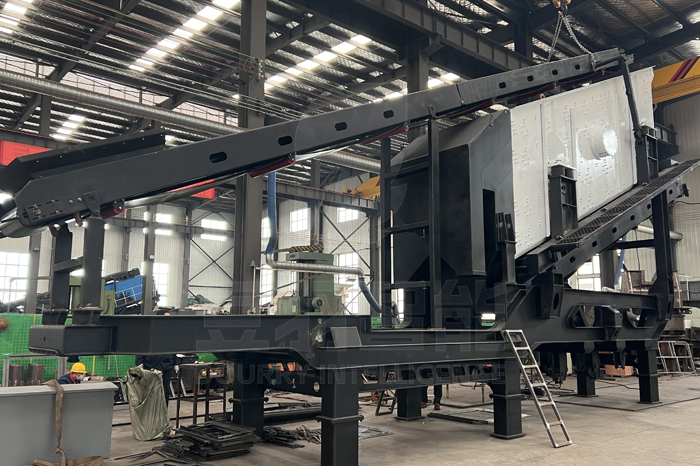

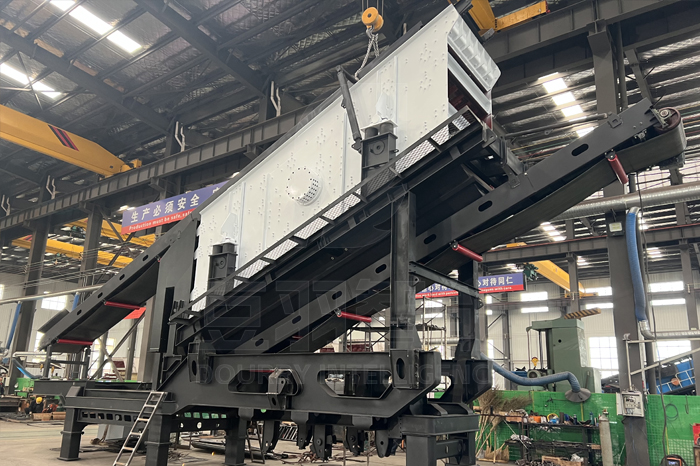

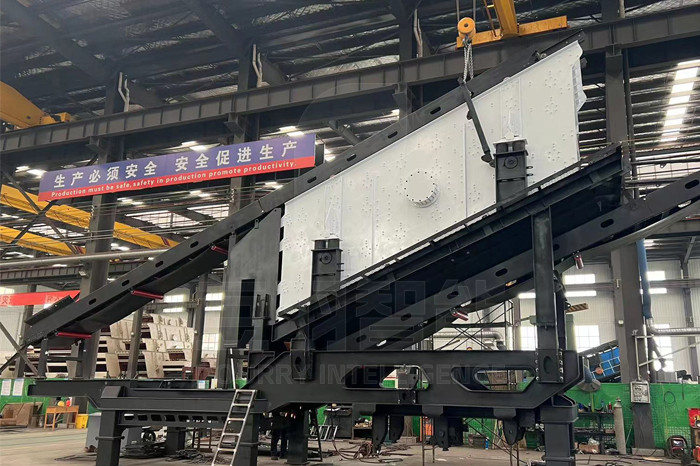

Overview

Tire type mobile crushing stations are mainly used for processing materials that often require relocation operations in metallurgy, chemical industry, building materials, hydropower, etc., especially for screening operations of mobile stone materials in highways, railways, hydropower projects, etc. Users can adopt various configuration forms according to the types, scales, and requirements of finished materials for processing. It can also be applied to construction waste treatment projects in urban demolition, crushing and screening construction waste into several different sizes and rules of recycled aggregates, which is the basis for realizing the resource utilization of construction waste in China.

Learn More About Tire type crushing and screening station

1. Advanced modular design
The device adopts a modular design concept, with multiple models sharing a common chassis, achieving interchangeability between different host units of the same model.
2. Flexible mobile configuration solution
Tire mobile stations can be used independently in a single crushing stage, or combined with other crushing and screening mobile stations to achieve two-stage, three-stage, or four stage crushing, meeting various crushing and screening needs.
3. Humanized structural design
The tire mobile station is equipped with a hydraulic system to control the installation, lifting, installation, transportation, contraction, folding, and other actions of the equipment. It is also equipped with maintenance lifting tools, operating platforms, maintenance toolboxes, and centralized control systems, ensuring user-friendly maintenance.

Working Principle

The main crushing equipment for mobile crushing stations can choose jaw crushers, impact crushers, or cone crushers. The materials are evenly conveyed to the crusher through a feeder, and after preliminary crushing, a closed-loop system composed of a circular vibrating screen is used for cyclic crushing, so that materials that meet the particle size requirements are output through the conveyor, thereby achieving production goals. According to actual production needs, the mobile crushing station can also remove the circular vibrating screen and directly perform preliminary crushing of materials, and then cooperate with other crushing equipment for further operation, thus achieving a convenient and flexible production process.

Specifications - Technical Data

Tire type jaw crushing station

Type	LTE500	LTE600	LTE750	LTE950
Silo	Integrated steel structure	Integrated steel structure	Integrated steel structure	Integrated steel structure
Feeder	ZZG3075	ZZG3895	ZZG4211	ZZG5012
Jaw crusher	PEV500×750	PEV600×900	PEV750×1060	PEV800×1200
Maximum feed particle size(mm)	425	500	630	750
Adjustment range of discharge port(mm)	50-100	65-180	80-180	100-275
capacity(t/h)	40-110	70-120	130-260	270-320
Main belt conveyor	B650	B800	B1000	B1400
Discharge belt	B800	B800	B1000	B1200
Excavated belt	B500	B500	B500	B650
hydraulic system	YZ10	YZ10	YZ30	YZ40
Power(kw)	73	78	145.5	201.5
Frame configuration	two bridges	two bridges	Three bridges	Four bridges

Tire type counterattack crushing and screening station

Type	LTF1210	LTF1214	LTF1315	LTF1320
vibrating screen	3YK1548	3YK1860	3YK2160	3YK2460
impact crusher	PF1210	PF1214	PF1315	PF1320
Maximum feed particle size(mm)	350	350	500	500
capacity(t/h)	50-80	100-150	150-200	250-300
Screening discharge belt conveyor	B800	B1000	B1200	B1400
hydraulic system	YZ20	YZ20	YZ30	YZ50
Frame configuration	two bridges	two bridges	Three bridges	Three bridges

Tire type cone crushing screening station

Type	LTS0917	LTS1860	LTS1636	LTH300
vibrating screen	3YK1548	3YK1860	3YK2160	3YK2160
cone crusher	PSGB0917	PSGB1321	PSGB1636	HP300
Maximum feed particle size(mm)	150	205	313	241
Adjustment range of discharge port(mm)	25-38	19-51	38-64	26-45
capacity(t/h)	50-100	100-150	150-220	200-250
Discharge belt conveyor	B650	B800	B1200	B1200
hydraulic system	YZ20	YZ20	YZ30	YZ30
Power(kW)	160	261	261	261
Frame configuration	two bridges	two bridges	Three bridges	two bridges

Notice:

Any change of Tire type crushing and screening stationtechnical data shall not be advised additionally.
