Overview

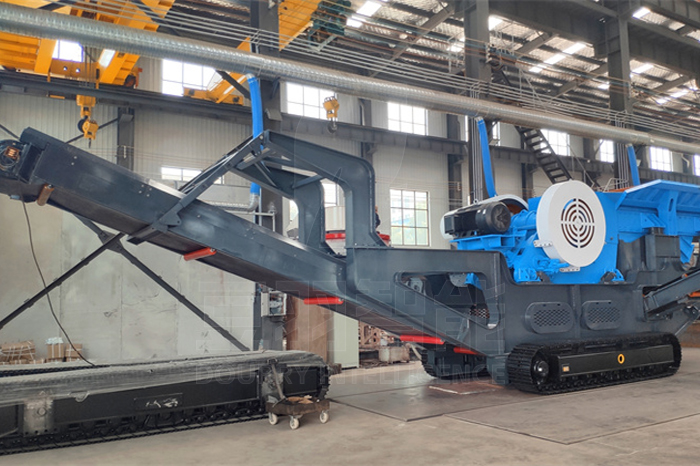

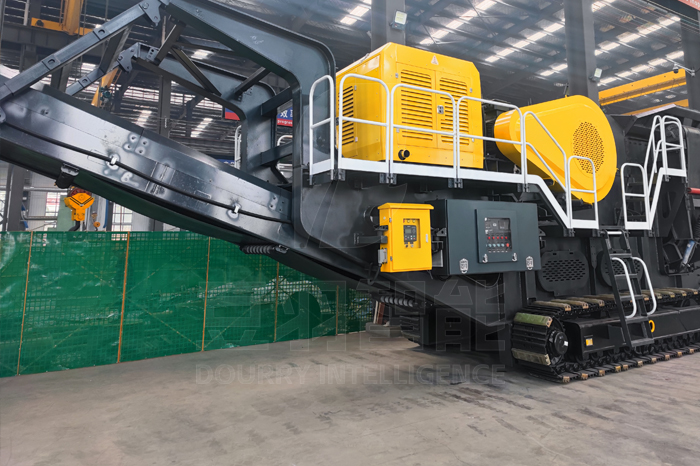

The SY series tracked mobile crushing station is a mobile crushing and screening equipment independently developed by our company. The chassis of the tracked vehicle is driven by a fully hydraulic system. This model has stable performance and beautiful appearance. Widely used in road and bridge construction, urban architecture, mineral mining and other fields
Learn More About Crawler crushing and screening station
1. A high-performance power system. Equipped with a diesel engine, it has low fuel consumption and low noise. The engine can be equipped with a low-temperature preheating starting device, allowing the equipment to start even in a low-temperature environment of minus 25 ℃.
2. All steel ship type structural chassis. It has the characteristics of high strength and low grounding voltage. Has good adaptability to mountains and wetlands.
3. High torque walking motor. High driving force and reliability provide reliable power support for the walking system.
4. Servo pilot operating system. Lightweight operation, accurate control, and the ability to achieve infinitely variable speed walking.
5. Efficient and mature crushing and screening equipment. The selection of our company's self-produced crushing and screening equipment ensures the excellent quality of the entire equipment.
6. Hybrid electric energy device, dual power intelligent conversion switch. It can fully utilize local electricity energy, save operating costs, and reduce emissions of CO and nitrogen oxides. Once the power is interrupted or under voltage, the diesel generator will automatically switch to generate electricity to ensure continuous operation of the equipment
Working Principle
1. A high-performance power system. Equipped with a diesel engine, it has low fuel consumption and low noise. The engine can be equipped with a low-temperature preheating starting device, allowing the equipment to start even in a low-temperature environment of minus 25 ℃.
2. All steel ship type structural chassis. It has the characteristics of high strength and low grounding voltage. Has good adaptability to mountains and wetlands.
3. High torque walking motor. High driving force and reliability provide reliable power support for the walking system.
4. Servo pilot operating system. Lightweight operation, accurate control, and the ability to achieve infinitely variable speed walking.
5. Efficient and mature crushing and screening equipment. The selection of our company's self-produced crushing and screening equipment ensures the excellent quality of the entire equipment.
6. Hybrid electric energy device, dual power intelligent conversion switch. It can fully utilize local electricity energy, save operating costs, and reduce emissions of CO and nitrogen oxides. Once the power is interrupted or under voltage, the diesel generator will automatically switch to generate electricity to ensure continuous operation of the equipment
Specifications - Technical Data
Crawler jaw crushing station
Type | Feed Opening(mm) | Crusher | Capacity(t/h) |
SY-C96 | 960×580 | JC96 | 105-390 |
SY-C106 | 1060×750 | JC106 | 150-500 |
SY-C116 | 1150×760 | JC116 | 165-520 |
SY-C120 | 1200×870 | JC120 | 175-540 |
SY-C150 | 1400×1200 | JC150 | 340-880 |
Crawler type counterattack crushing and screening station
Type | Feed particle size(Mm) | Crusher | Return material sieve | Capacity(t/h) |
SY-F1214 | 630 | LF1214 | / | 160-240 |
SY-F1314 | 700 | LF1314 | / | 200-320 |
SY-F1214S | 630 | LF1214 | 1237 | 160-240 |
SY-F1314S | 700 | LF1314 | 1542 | 200-320 |
Crawler type cone crushing and screening station
Type | Feed particle size(Mm) | Crusher | Return material sieve | Capacity(t/h) |
SY-HT250 | 215 | HT250 | / | 150-320 |
SY-HP300 | 190 | HP300 | / | 150-300 |
SY-HT250S | 215 | HT250 | 1542 | 150-320 |
SY-H300S | 190 | HP300 | 1542 | 150-300 |

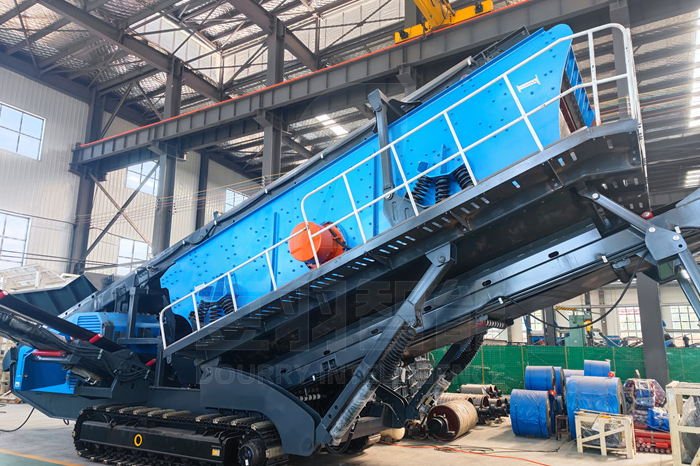

Crawler type screening station
Type | screen area(Mm) | Number of sieve layers | Capacity(t/h) |
SY-S1860 | 6000×1800 | 3 | 150-300 |
SY-S2160 | 6000×2100 | 3 | 180-400 |
Notice:
Any change of Crawler crushing and screening stationtechnical data shall not be advised additionally.
