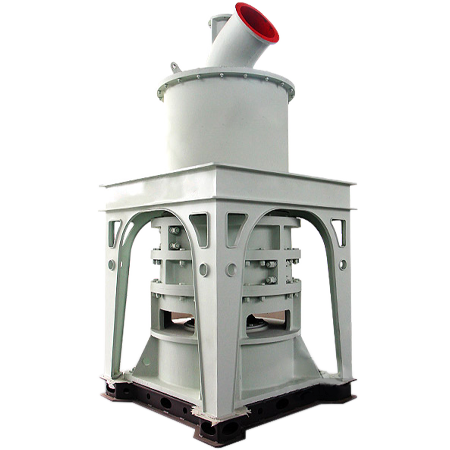

HGM Roller-Ring Micro powder Grinder

Processed Materials:calcite, limestone, dolomite, gypsum,kaolin, bentonite, mica, illite,alc, vermiculite, sepiolite, attapulgite, diatomaceous earth,etc

Applications:Calcium carbonate crushing processing,Gypsum crushing processing,Power plant desulfurization,Non-metallic mineral crushing,Coal powder preparation,Construction industry,Building materials industry,Glass industry,etc

Type: mill

Input Size: ≤10

Overview

High efficiency and low consumption,Long service life,No rolling bearings and screws,Adjustable fineness,Easy maintenance

Learn More About HGM Roller-Ring Micro powder Grinder

1. Working principle:
After the material is crushed, lifted and fed, it is pressed, rolled and ground into powder by the ring roller in the grinding ring, sucked by the fan, and the finished product is collected after powder selection.
2. Technical advantages:
High efficiency: the output is 40% higher than that of traditional grinding mills.
Durable: the life of wear parts is more than 1 year.
Easy maintenance: no rolling bearing and screw design.
Controllable fineness: adjustable to d97≤5μm.
3. Application areas:
Non-metallic ore crushing, power plant desulfurization, coal powder preparation, etc.
4. Components:

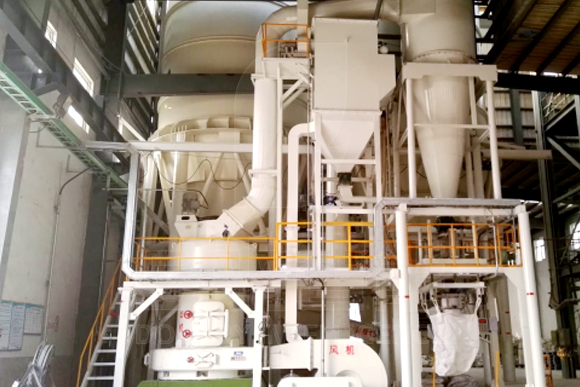

Including main engine, blower, analyzer, cyclone powder accumulator, bag dust collector, etc., and other auxiliary equipment can be equipped as needed.
5. Operation and maintenance:
Centralized control, basically realize unmanned operation.
Good sealing, reduce dust pollution.
6. Environmental protection and energy saving:
Low energy consumption, only one-third of that of air jet mill.
Multi-stage sealing, reducing pollution and meeting emission standards.

Working Principle

1.Material preparation
2.Material transportation
3.Uniform feeding
4.Crushing process
5.Wind conveying and classification
6.Finished product collection
7.Dust treatment

Specifications - Technical Data

型号Model	粉磨直径Diameter(mm)	辊轮和辊道Number of rings and rollers		最大进料尺寸Feed Sze(mm)	成品细度Fineness Of final products		处理量Capacity(kg/h)	电机Motor Power(kw)			外形尺寸Overall dimension(L×W×H)(m)
型号Model	粉磨直径Diameter(mm)	辊轮数 Roller	辊道数 ring	最大进料尺寸Feed Sze(mm)	微米 Micron	目数 mesh	处理量Capacity(kg/h)	主机 Mainframe	选粉机 Powder Collector	风机 Blower	外形尺寸Overall dimension(L×W×H)(m)
HGM608	608	12-14	2-3	≤10	5-45	325-2500	100-1500	37	11	30	10×2×5.5
HGM808	808	18-21	3-4	≤10	5-45	325-2500	300-4500	55	18.5	45	11.9×2.7×5.8
HGM1008	1008	28-32	3-4	≤10	5-45	325-2500	600-7500	110	30	75	14.5×3.8×6.3
HGM1308	1308	36-40	3-4	≤10	5-45	325-2500	900-12000	180	75	132	16×8×9.2

Notice:

Any change of HGM Roller-Ring Micro powder Grindertechnical data shall not be advised additionally.
