Feeder

Feeder

Processed Materials:Confirmed on-site

Applications:In the crushing and screening equipment of industries such as metallurgy, coal mining, mineral processing, building materials, chemical engineering, and abrasives.

Type: auxiliary equipment

Input Size: Various size

Overview

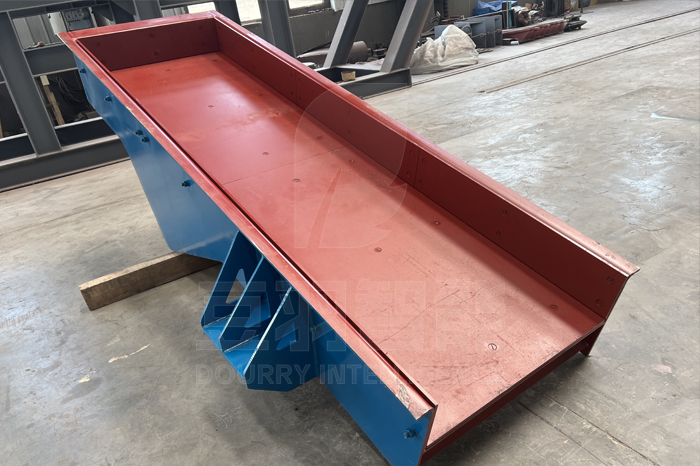

The FD series heavy-duty vibrating feeder is a new and efficient vibrating feeder independently developed and designed by our company based on years of experience in mining industry design, production, sales, and service, combined with the development of modern industrial technology and widely absorbing the most advanced design concepts from abroad. In the production line, it can provide continuous and uniform feeding for crushing machinery, and perform coarse screening on materials. It is widely used in crushing and screening equipment in industries such as metallurgy, coal, mining, building materials, chemical, and abrasives.

Learn More About Feeder

High feeding capacity and screening efficiency
Easy angle adjustment and wide range of use

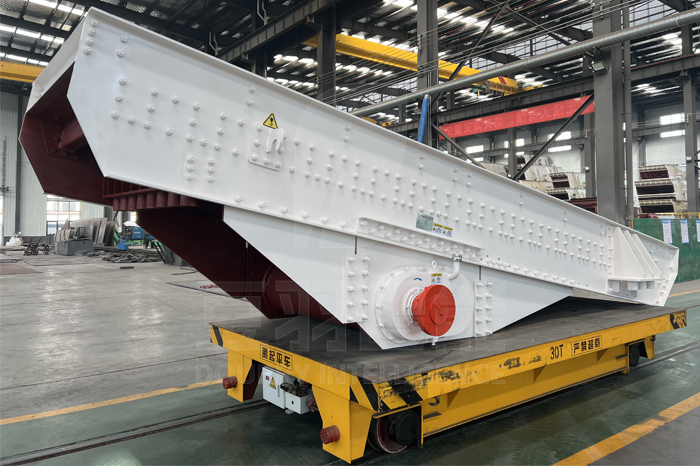

Vibration exciter - efficient, stable, and easy to maintain

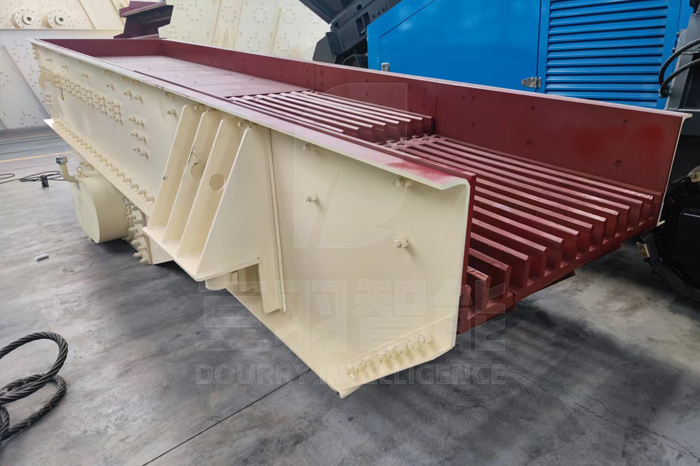

Large staircase anti blocking bar
Stable feeding box, capable of carrying greater warehouse pressure and materials
Unique motor base structure, low noise, smooth operation

Working Principle

The vibrating feeder uses the eccentric block in the vibrator to rotate and generate centrifugal force, causing the movable parts such as the sieve box and vibrator to move in a forced continuous circular or approximately circular motion. The vibrating feeder is composed of a feeding tank, exciter, spring support, transmission device, etc. The vibration source of the trough vibration feeding is the exciter, which is composed of two eccentric shafts (active and passive) and a gear pair. The exciter is driven by an electric motor through a V-belt to drive the active shaft, and then the passive shaft is rotated by the gear meshing on the active shaft. The active and passive shafts rotate in the opposite direction at the same time, causing the trough to vibrate and continuously flow the material, achieving the purpose of conveying the material.

Specifications - Technical Data

Type

specifications W×L(mm)

dip angle(°)

Rod length(mm)

Maximum Feed

(mm)

speed

(r/min)

maximum throughput(t/h)

Power

(kW)

Weight

(t)

FD1036

1000X3600

8 (0-15)

2X900

600

650-900

400

15

4.5

FD1036M



blind plate





3.98

2FD1036



top:2X900

bottom:1X1.8㎡





5.3

FD1245

1200X4500


2X900

700


600

22

6.02

FD1245M



blind plate





5.5

2FD1245



top:2X900

bottom:1.2X1.8㎡





6.7

FD1260

1200X6000


3X900

700


600

22

7.42

FD1260M



blind plate





6.9

2FD1260



top:3X900

bottom:1.2X2.7㎡





8.5

FD1560

1500x6000


3X900

900


1000

30

8.65

FD1560M



blind plate





8.06

2FD1560



top:3X900

bottom:1.5X2.7㎡





9.85

FD1860

1800X6000


3X900

1100


1300

37

9.8

FD1860M



blind plate





9.18

2FD1860



top:3X900

bottom:1.8X2.7㎡





11.6

FD2160

2100X6000


3X900

1300


1700

45

11.2

FD2160M



blind plate





10.6

2FD2160



top:3X900

bottom:2.1X2.7㎡





12.5

Notice:

Any change of Feedertechnical data shall not be advised additionally.
