Overview

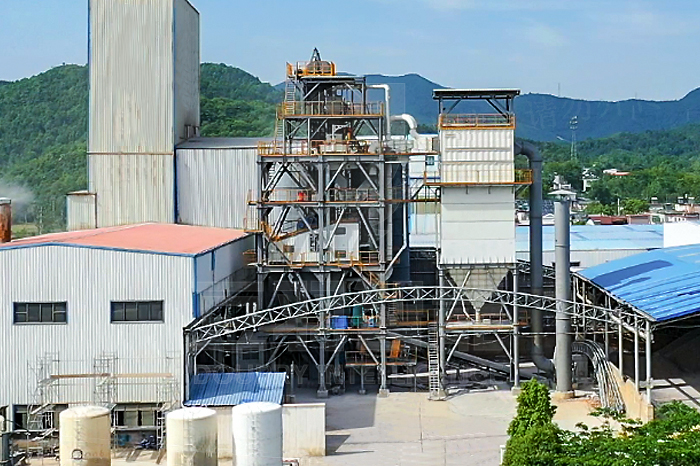

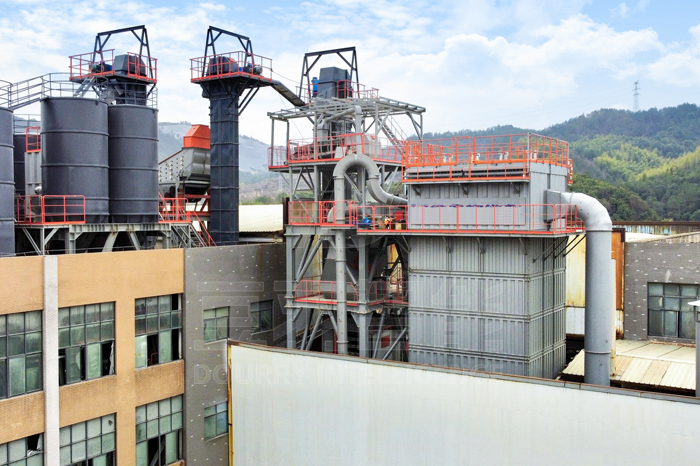

The main building has a small footprint and is mainly composed of six parts: feeding, sand making, finished product discharge, dust removal, stone powder storage, and electrical control; The sand making system is the core part of the entire production process, where raw materials undergo crushing and shaping, air selection and screening, grading adjustment, and humidity control. The main building can be packaged according to customer requirements, unaffected by weather conditions, and produced 24/7, while also providing dust and noise reduction effects
Learn More About Sand making building
high efficiency
Modular design, easy installation; Tower style design, upgraded wear-resistant materials, long service life of wear-resistant parts, and efficient maintenance; Centralized control system, efficient management;
superior quality
The performance of the finished sand is stable, adjustable, with controllable powder content, reasonable gradation, and rounded particle shape, mainly high square and spherical;
High environmental protection
The tower type sand making machine equipment adopts a closed structure, a closed conveying system, air selection process, and mixing machine configuration, achieving no dust overflow, no dust, and environmentally friendly production;
High returns
The equipment has stable performance, reasonable process, low energy consumption, intelligent electronic control system, high equipment operation efficiency, low management cost, low labor investment, and fast cost recovery;
Working Principle
Its working principle is as follows: 0-40mm raw materials are fed into a vertical impact crusher through a hoist, and after high-frequency stone crushing and grinding, they enter a linear vibrating screen. The qualified materials after screening are mixed and wetted by a humidifying mixer before being transported to the finished product warehouse. The oversized materials are returned to the vertical impact crusher for further processing. At the same time, the entire production process is ensured by a dust removal and powder selection system to control the negative pressure production and powder content in the finished sand. After treatment in the DY1030 sand making building, the finished sand with reasonable grading, round particle size, and controllable powder content, as well as high value-added stone powder that is dry, clean, and can be uniformly recycled and reused, are produced.

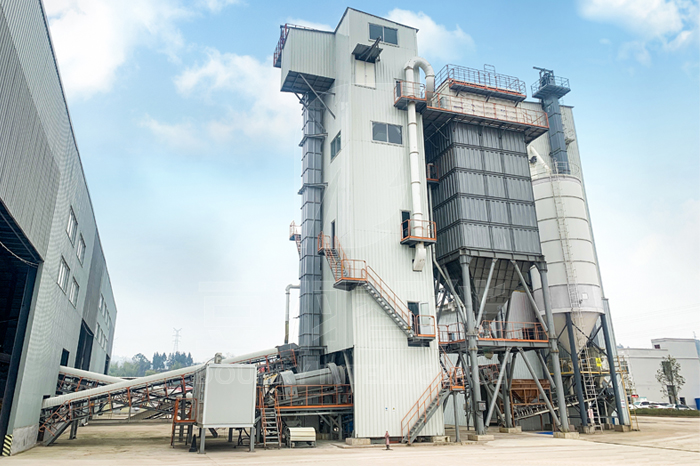

The overall structure is arranged in a highly intensive tower style layout, occupying a small area. In the design of steel structures, we strive for simplicity, strong integrity, and ease of processing and manufacturing. In detail design, we pursue precision and aesthetics.
Specifications - Technical Data
Type | DY1030 |
function | Sand making | Sand and gravel come out together |
Equipment requirements for raw materials
| Maximum feed particle size | 40mm |
moisture content | ≤1.5% |
Soil content | ≤1% |
Stone powder content | ≤5% |
Types of raw materials | Non weathered soft and hard rocks with compressive strength that meets the requirements |
Raw material input amount | 90-110t/h | 180-300t/h |
production capacity | machine-made sand（0-4.75mm） | 80-90t/h | 60-80t/h |
Mechanized crushed stone（5-31.5mm） | / | 110-200t/h |
noise control | Outside the building（40m）≤65dB（A） |
Floor area (length x width x height) | 27.5m×7.5m×28m |
dust control | Organized emissions≤20mg/ m3 |
power | ≈740kW |
Notice:
Any change of Sand making buildingtechnical data shall not be advised additionally.
