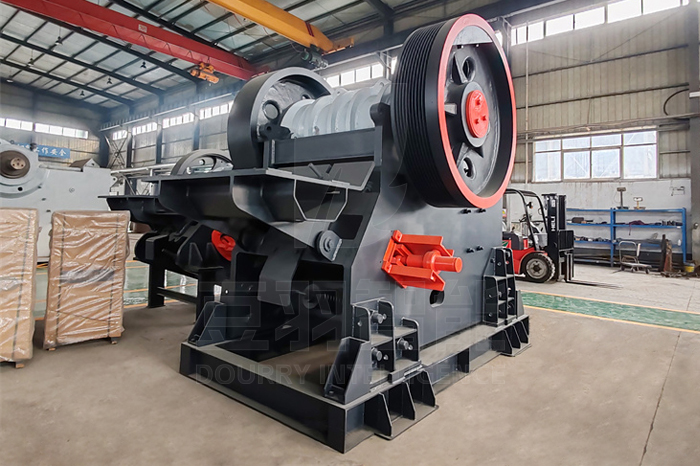

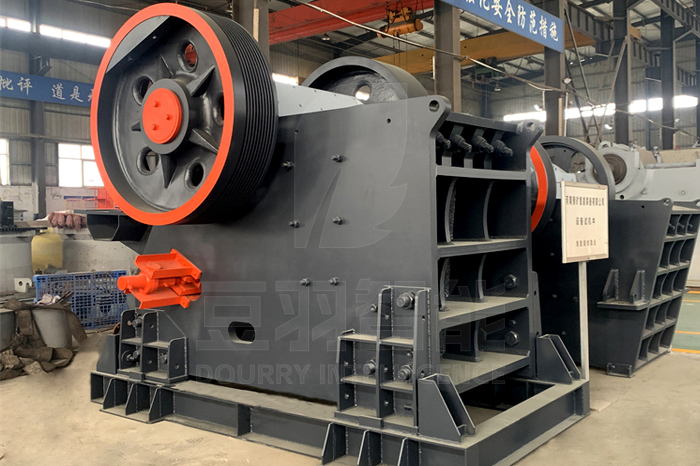

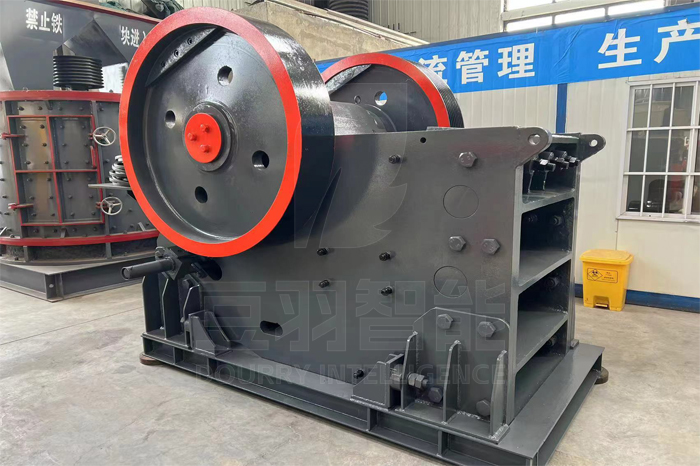

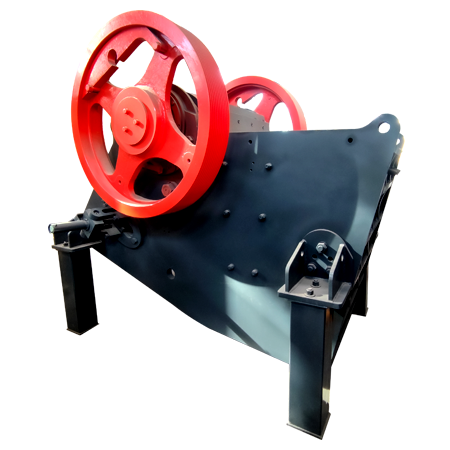

C Series Jaw Crusher - HENAN DOURRY INTELLIGENT EQUIPMENT CO., LTD.

Overview

The C series jaw crusher is a new type of jaw crusher developed by our company based on the introduction and absorption of advanced foreign technology, and according to the actual needs of customers on site, using a new design structure. This series of jaw crushers has efficient motion performance and strong power, ensuring their efficient and stable operation in harsh mining environments. It is an ideal upgrade and replacement product for traditional jaw crushers.

Learn More About C Series Jaw Crusher

Unique shock absorption design
High crushing efficiency
Adjustment is more convenient
High reliability of the body
Easy installation and debugging
Low noise

Working Principle

The motor drives the belt and pulley, and the movable jaw moves up and down through an eccentric shaft. When the movable jaw rises, the angle between the elbow plate and the movable jaw increases, thereby pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is crushed or split, achieving the purpose of crushing; When the movable jaw descends, the angle between the elbow plate and the movable jaw decreases. Under the action of the tension rod and spring, the movable jaw plate separates from the fixed jaw plate, and the crushed material is discharged from the lower outlet of the crushing chamber. As the electric motor continues to rotate, the crusher's jaw undergoes periodic motion to crush and discharge materials, achieving mass production.

Specifications - Technical Data

Model		C80	C100	C110	C125	C145	C160	C200
Feeding port length(mm)		800	1000	1100	1250	1450	1600	2000
Feeding width(mm)		520	760	850	950	1100	1200	1500
Electric motor(Kw)		75	110	160	160	200	250	400
Rotating speed(rpm)		350	260	230	220	220	220	200
Product Size(mm)	Tight edge discharge port(mm)	t/h	t/h	t/h	t/h	t/h	t/h	t/h
0-90	60	80-110
0-105	70	100-135	130-180
0-120	80	110-150	150-220	160-240
0-135	90	130-175	170-220	180-260
0-150	100	145-190	190-250	200-280	240-340
0-185	125	180-245	235-310	250-360	280-410	320-470
0-225	150	225-290	280-360	300-430	340-480	370-550	420-610
0-260	175		330-420	340-490	370-550	430-630	470-700	620-890
0-300	200			380-550	420-620	480-710	530-790	690-1000
0-340	225				470-690	540-790	590-880	770-1100
0-375	250				520-760	600-870	650-970	850-1200
0-410	275					660-950	700-1060	930-1300
0-450	300						750-1100	1000-1500

Notice:

Any change of C Series Jaw Crushertechnical data shall not be advised additionally.
