Overview

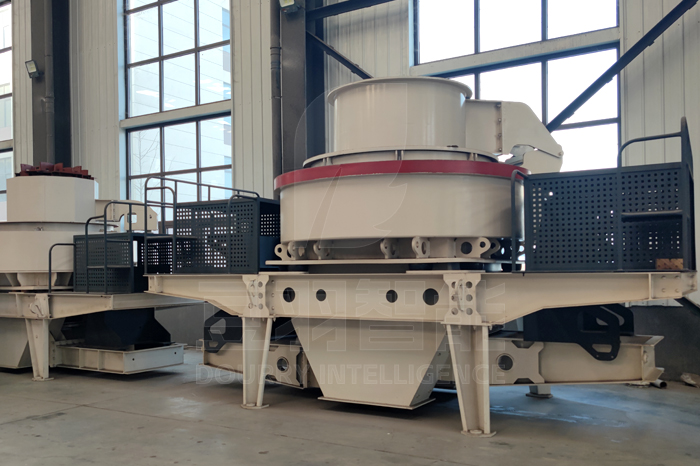

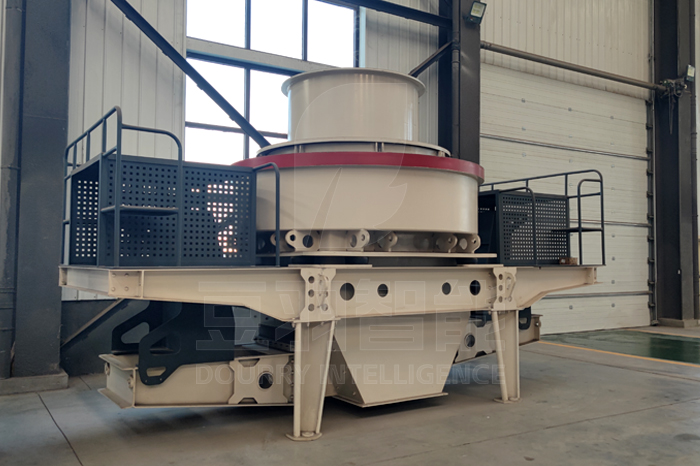

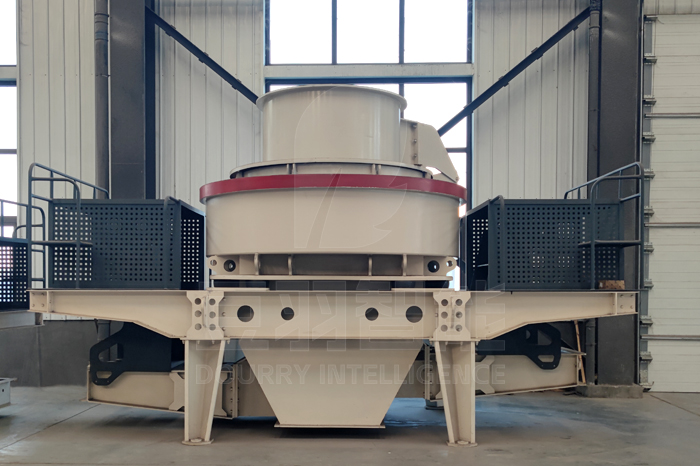

VSI sand making machine, also known as impact crusher, can process various rocks, sand and gravel, and river pebbles into construction sand that meets various particle size requirements. The sand produced by it is evenly distributed and has high compressive strength, meeting the needs of construction. It has more advantages than natural sand and sand produced by ordinary hammer sand machines. The device is characterized by reliable performance, reasonable design, easy operation, and high work efficiency. Widely applicable to various hard and brittle materials in medium and fine crushing, such as rocks, abrasives, refractory materials, cement clinker, quartz, iron ore, and concrete aggregates.
Learn More About 5X Vertical Shaft Impact Crusher
1. The rotor adopts the advanced 4-way discharging design to improve the passing capacity; The crushing ratio increases more than 20%, compared with the 3-way old type.
2. To optimize the rotor structure and manufacturing technology, it increases the rotor life more than 30-200%, compared with the old type.
3. The transmission part adopts the special sealing design to avoid the oil-leaking of the bearings tube; 3 national patents; The bearings are German/USA imported.
4. Special crane device design, easy to maintenance.
5. Discharging part design: simple, effective and avoid the high moisture material blocks.
6. Rock on rock working principle. Reduce the wear parts and maintenance cost.
Working Principle
1. Excellent particle size of the product: The product is made in a cubic shape, with good particle size, reasonable grading, and adjustable fineness modulus, especially suitable for manual sand making and stone shaping.
2. Low wear and tear of vulnerable parts: The optimized design of the crushing chamber reduces the friction between materials and wear-resistant components, directly reducing the equipment's operating costs.
3. Long service life: Equipped with a standard thin oil lubrication station, it effectively solves problems such as bearing heating, keeps the spindle bearings at a constant temperature, and extends maintenance cycles and service life.
4. Easy to operate and maintain: The equipment is lightweight, has various installation methods, and is easy to operate and use. Once the specific purpose is identified, only minor adjustments are needed to fully utilize its performance. Equipped with a hydraulic opening device, it makes the maintenance and replacement of components inside the crushing chamber more convenient and efficient, saving time and manpower.
5. Multi functional application, strong flexibility: With multiple crushing chamber types, it can easily achieve the conversion between "stone to stone" and "stone to iron", solving the problem of multi-purpose use of one machine and meeting the different needs of users, such as manual sand making, crushed stone shaping, abrasive materials, etc.
Specifications - Technical Data
Type | Throughput | Max feeding size | Rotation speed (mm) | Double motor (kW) | Dimension(L*W*H) (mm) | Weight(t) |
|---|
| Waterfall and central feeding (kW) | all central feed | Soft material | Hard material |
|
|
|
|
5X-7615 | 150-280 | 70-140 | <35 | <30 | 1700-1900 | 150 | 4100×2330×2300 | 8.6 |
5X-8522 | 240-380 | 120-200 | <40 | <35 | 1500-1700 | 1220 | 4140×2500×2700 | 11.8 |
5X-9532 | 350-540 | 180-280 | <45 | <40 | 1300-1510 | 320 | 4560×2600×2900 | 17.5 |
5X-1145 | 500-640 | 250-360 | <50 | <45 | 1100-1310 | 440 | 5100×2790×3320 | 27.5 |
Notice:
Any change of 5X Vertical Shaft Impact Crushertechnical data shall not be advised additionally.
