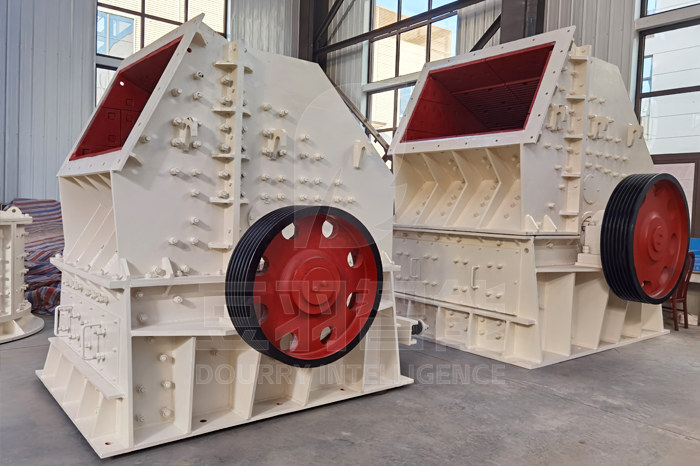

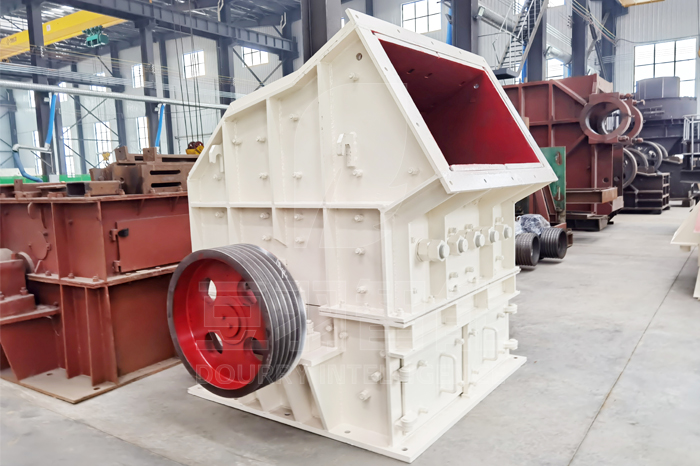

PFC impact Crusher

Learn More About PFC impact Crusher

1. Large feed inlet, high crushing chamber, suitable for high material hardness and large block size.

2. The material is suspended and the crushing power consumption is low.

3. Novel hammer head with high impact force.

4. The hammer head is made of high-quality material and has a long service life.

5. Adjustable grid size; The product has controllable particle size and good particle shape.

6. The chassis can be flipped over for easier maintenance.

7. Square handle bolt, resistant to impact and wear.

8. Compact structure and strong rigidity of the machine.

9. Assembled structure, easy to handle and install.

10. Full range of functions including impact, counter impact, and impact (stone to stone) crushing, high production efficiency, minimal mechanical wear, and significant overall benefits.

Working Principle

The main working component of a heavy hammer crusher is a rotor with a hammer, which is composed of a main shaft, a disc, a pin shaft, and a hammer. The motor drives the rotor to rotate at high speed inside the crushing chamber, and the material is fed into the machine from the upper feeding port. It is crushed by the impact, shearing, and grinding of the high-speed moving hammer. At the lower part of the rotor, there is a sieve plate. The particles smaller than the sieve hole size in the crushed material are discharged through the sieve plate, while the coarse particles larger than the sieve hole size are retained on the sieve plate and continue to be hit and ground by the hammer. Finally, they are discharged outside the machine through the sieve plate.

Specifications - Technical Data
