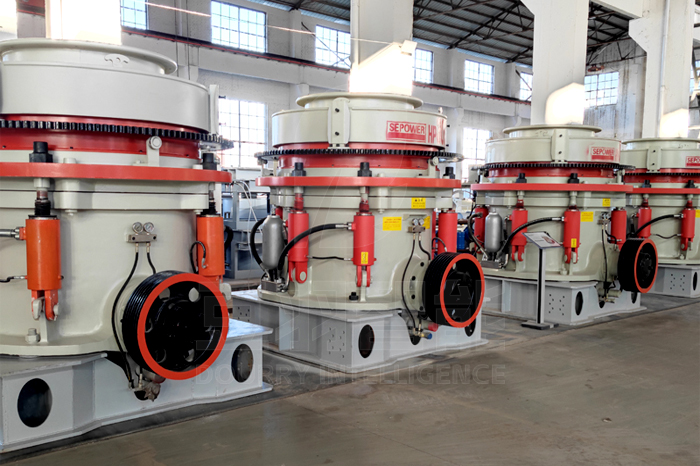

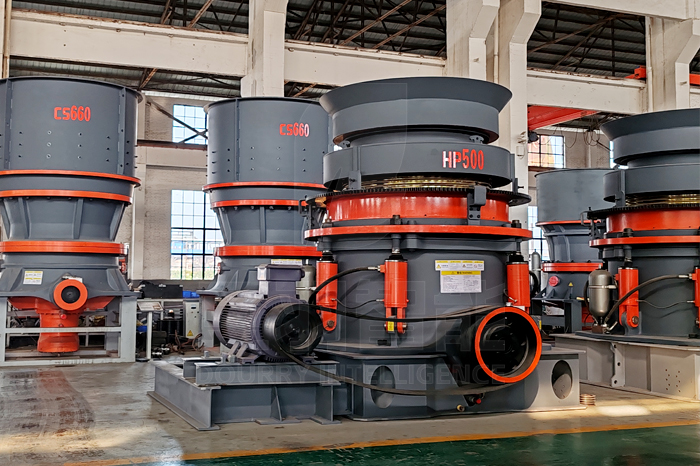

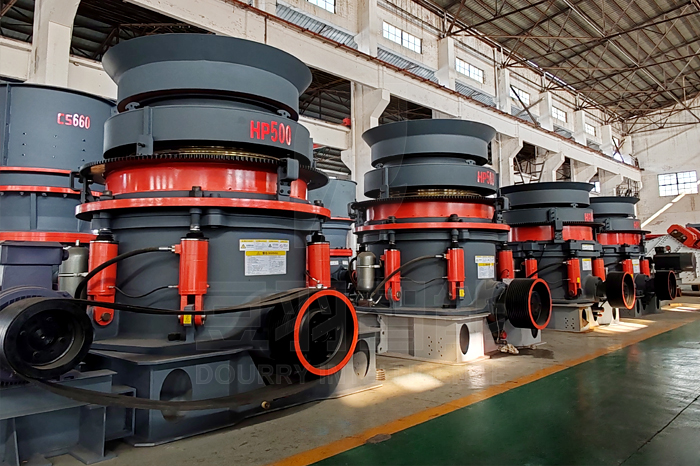

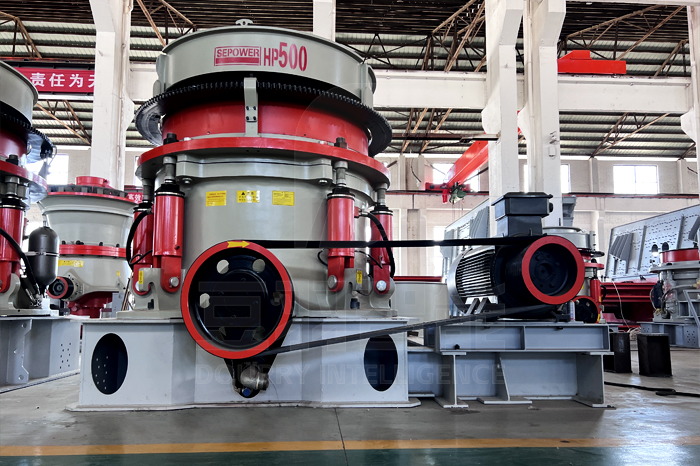

Overview
The HP series multi cylinder hydraulic cone crusher is mainly used for the secondary or tertiary crushing process of sand and gravel processing. This machine has unique advantages in processing materials with high hardness and fine crushing, and is widely used for crushing medium hardness materials such as basalt, granite, and river pebbles.
Learn More About HPT Cone Crusher
1、 Laminated crushing
The reasonable combination of crushing chamber, rotational speed, and eccentricity (stroke) enables:
Crushing occurs between materials, extending the lifespan of the lining plate.
The particle size of the discharge is more uniform and cubic, which is conducive to sand making operations in construction.
2、 Advanced hydraulic system
Large diameter oil pipe, large capacity accumulator, faster response, and safer and more stable equipment.
The adjustment of the discharge port (through the forward and reverse rotation of the hydraulic motor), iron protection, chamber cleaning, locking of the discharge port, and quick disassembly and assembly of the equipment are simple and convenient to operate, reducing downtime and saving manpower and material resources.
3、 Integrated hydraulic lubrication system
The lubrication station and hydraulic station are integrated, with a small footprint and easy maintenance.
The amount of lubricating oil has decreased by 1/5 compared to equipment of the same specifications.
German AKG air-cooled radiator, no worries about water shortage and leakage.
High flow gear pump, stable and reliable oil supply.
Temperature sensors are added to the oil return points of the oil tank and transmission shaft for more accurate temperature detection and reliable protection.
4、 Optimized crushing wall and rolling bowl wall
Thickened design, more powerful, reliable, and has a long service life.
Fixed more advanced, installation and replacement do not require filling glue, shortening downtime.
5、 Safe and reliable
Touch screen intelligent control system: easy and intuitive operation, complete data recording, and sensitive protection.
Advanced bearing design: large bearing area, low bearing pressure; High load-bearing capacity and long bearing life.
The overall cast steel frame and arm frame box beam design provide greater strength for the frame.
Multiple sealing protection: Positive pressure dust-proof, U-T seal, and contact type spherical floating seal ensure the cleanliness of lubricating oil.
Working Principle
During work, the moving cone performs a swinging motion along its inner surface. When approaching the fixed cone, the material is crushed by the compression and bending of the moving cone; And far away from the moving cone, the already broken material falls from the bottom of the cone due to gravity. The entire crushing and unloading process is carried out continuously and sequentially along the inner surface. The locking protection cylinder consists of several locking protection cylinders, over iron protection accumulator, buffer accumulator group, and pipelines. The locking protection cylinder is mainly used for iron protection and cleaning the crushing chamber. Every two hydraulic cylinders are equipped with a buffer accumulator, which is used to absorb the adjustment ring jumping impact caused by a small amount of hard material during normal crushing.
Specifications - Technical Data
Type | CSS(m)Tight edge discharge port size |
| 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 45mm | 51mm |
HP300 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 |
|
HP500 |
| 200-350 | 200-350 | 200-350 | 200-350 | 200-350 | 200-350 | 200-350 | 200-350 | 200-350 | 200-350 |
HP800 |
| 265-340 | 265-340 | 265-340 | 265-340 | 265-340 | 265-340 | 265-340 | 265-340 | 265-340 | 265-340 |
Type | Cavity type | Closed side feed opening size | Minimum discharge port size | Capacity(t/h) | Power | Dimension (L x W x H)(mm) | Weight(t) |
HPT300 | C1(Extra Coarse) | 230 | 25 | 220-440 | 220(300) | 2726×1950×2182 | 20 |
| C2(Coarse) | 210 | 20 | 190-380 |
|
|
|
| M(Medium Fine) | 150 | 16 | 175-320 |
|
|
|
| F1(Fine) | 105 | 13 | 110-260 |
|
|
|
| F2(Extra Fine) | 80 | 10 | 100-240 |
|
|
|
HPT500 | C1(Extra Coarse) | 330 | 38 | 425-790 | 400(500) | 3447×2830×2977 | 40 |
| C2(Coarse) | 290 | 30 | 380-700 |
|
|
|
| M(Medium Fine) | 210 | 22 | 330-605 |
|
|
|
| F1(Fine) | 130 | 16 | 270-535 |
|
|
|
| F2(Extra Fine) | 95 | 13 | 200-430 |
|
|
|
HP800 | C1(Extra Coarse) | 350 | 38 | 545-1200 | 630(850) | 3970×3260×4367 | 70 |
| C2(Coarse) | 300 | 32 | 495-1050 |
|
|
|
| M(Medium Fine) | 265 | 25 | 470-950 |
|
|
|
| F1(Fine) | 220 | 17 | 385-730 |
|
|
|
| F2(Extra Fine) | 150 | 14 | 310-600 |
|
|
|
| F3(Extra Fine) | 90 | 10 | 260-550 |
|
|
|
Notice:
Any change of HPT Cone Crushertechnical data shall not be advised additionally.
